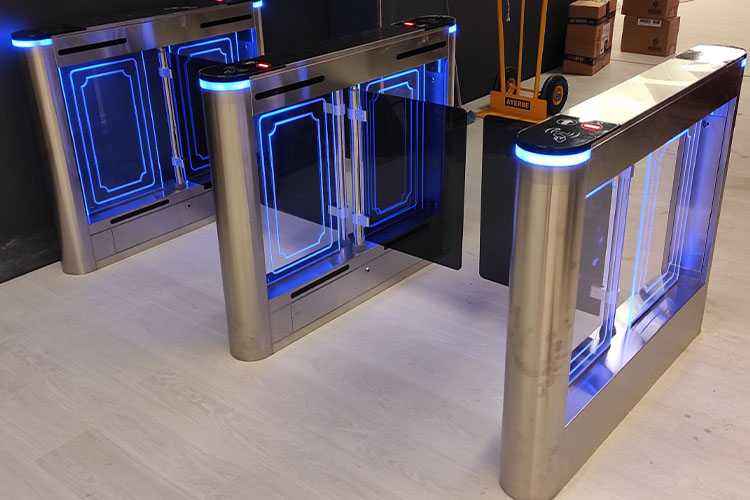

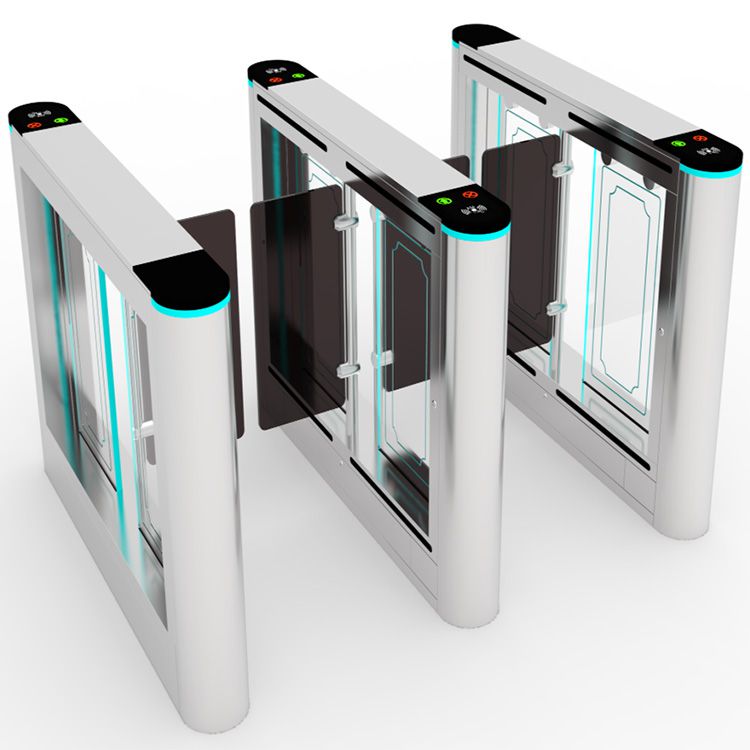

Gym and Office Building Optical Swing Barrier Gate Turnstile

Technical Parameters:

Standard product functions and features:

1. It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use.

2. Through the built-in small button on the main control board, the running status of the programmable device.

3. Anti-pinch and anti-collision functions, when the swing arm encounters resistance in the process of resetting, the motor will automatically stop working within a specified time, and reset again after the default delay (until reset), with a small force (≤2Kg).

4. Illegal intrusion, tailgating alarm, reverse intrusion gate will automatically close.

5. With anti-shock function, the swing arm will be automatically locked when no signal to open the gate is received.

6. Anti-collision function After illegal intrusion and pushing to a certain angle, the clutch will be locked and prohibited from passing, and the swing arm will automatically reset after exiting the channel.

7. Anti-collision function: When the person is in the infrared blind zone, the door will hit the human body during the closing process. The force is small and adjustable. After the impact occurs, the door will rebound and release.

8. The swing arm can be adjusted synchronously (for double swing).

9. It has an automatic reset function. After the gate is opened, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time. The reset time is adjustable from 1S to 60S (the default time of the system is 10S), and the power is turned off. The rear channel is automatically opened (in compliance with fire protection requirements), and the power-on channel is automatically closed.

10. Infrared induction reset function (optional 4 pairs or 6 pairs of infrared).

11. Infrared induction anti-pinch function (4 pairs of infrared).
