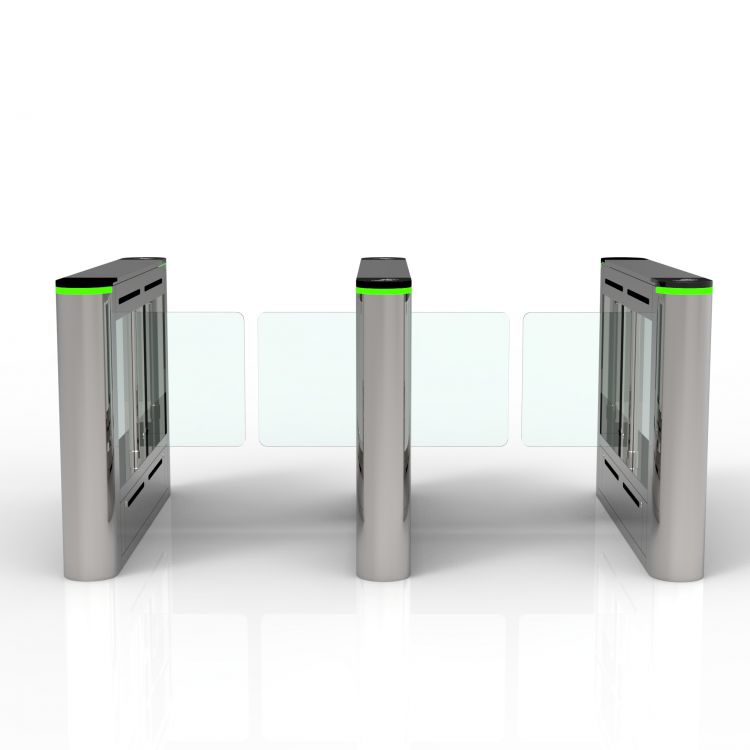

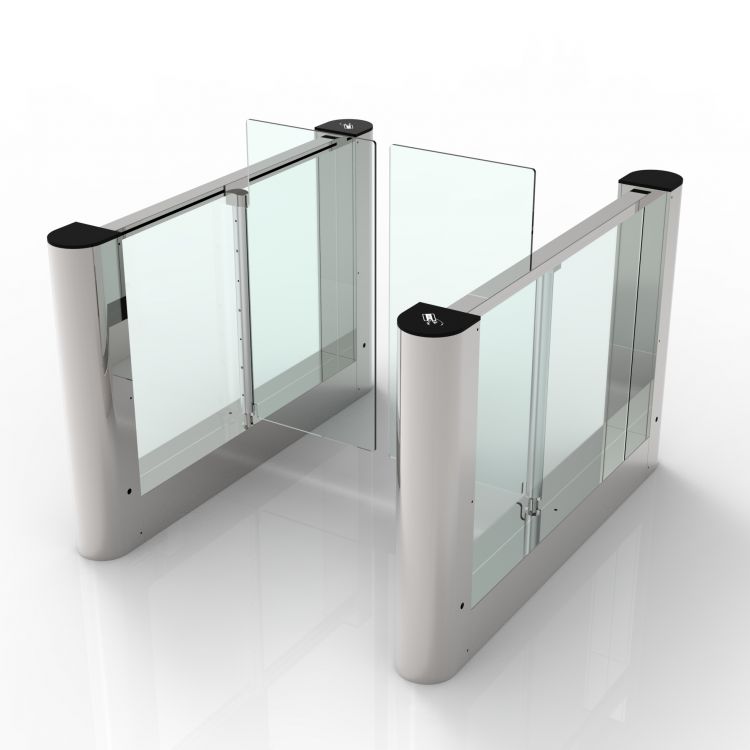

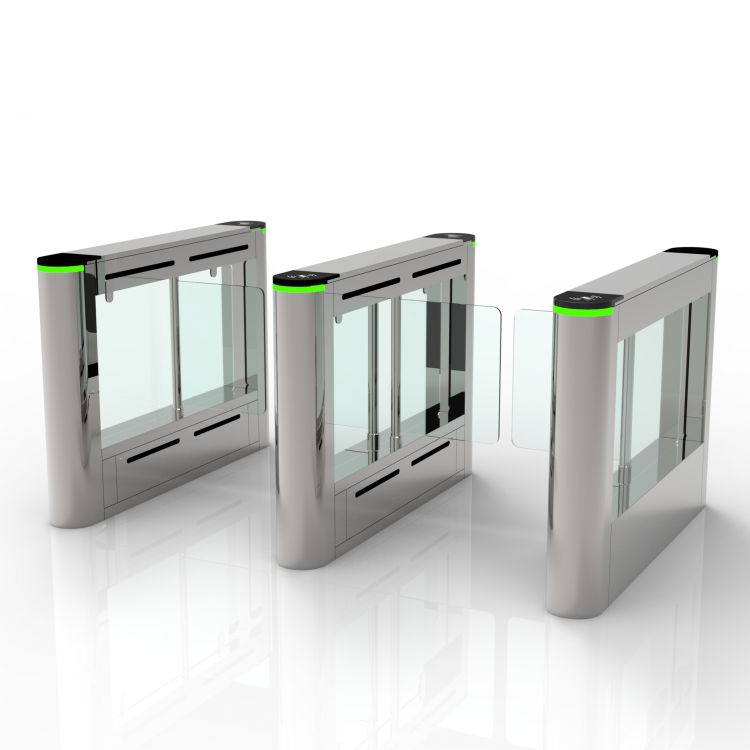

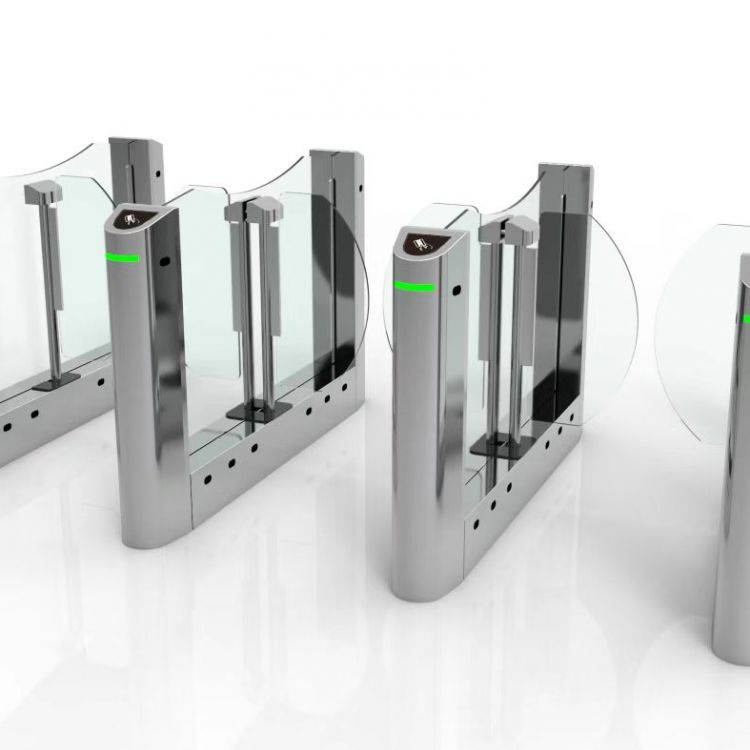

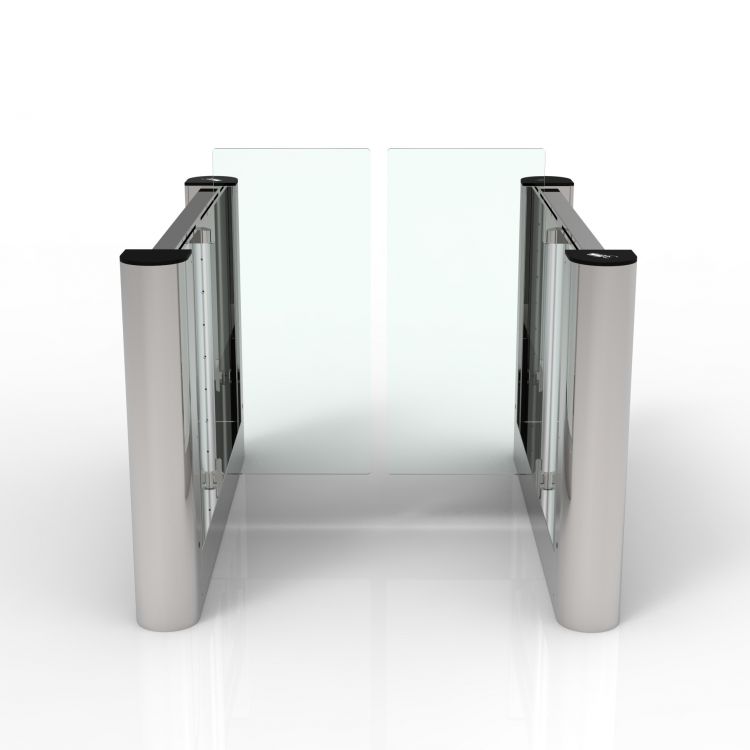

Anti-tailgating tracking control technology strictly prevents unauthorized personnel from passing through, which is also a major feature of the pedestrian swing turnstile gate. The anti-pinch function automatically rebounds when encountering obstacles during the door wing reset process, or the motor automatically stops working within the specified time.
The anti-collision function automatically locks the door wing when no door opening signal is received, and the swing turnstile can withstand an impact force of 120Nm, with self-detection, self-diagnosis, and automatic alarm functions. Sound and light alarm functions, including illegal intrusion alarm, anti-pinch alarm, and anti-tailgating alarm.
The remote control management function can be operated online or offline, with LED traffic direction indication, displaying the traffic status. When the power is off, the door wing is in a free state, and people can pass freely to prevent panic.
In addition, the pedestrian swing turnstile has an automatic reset function. After the door is opened, if no one passes through within the specified time, the system will automatically cancel the user's access permission for this time, and the access time can be set.
Technical Parameters:
Chassis material | SUS 304 stainless steel |
Drive motor | DC24V brushless motor |
IR sensor | 4 pairs or more |
Size | 1400L*170W*990H（MM） |
Passage width | 600-900mm |
Swing direction | single direction/ bi-direction |
Opening/ closing speed | 0.8s~1 s adjustable |
Traffic speed | 38 persons/minute |
