Flap Barrier Gate

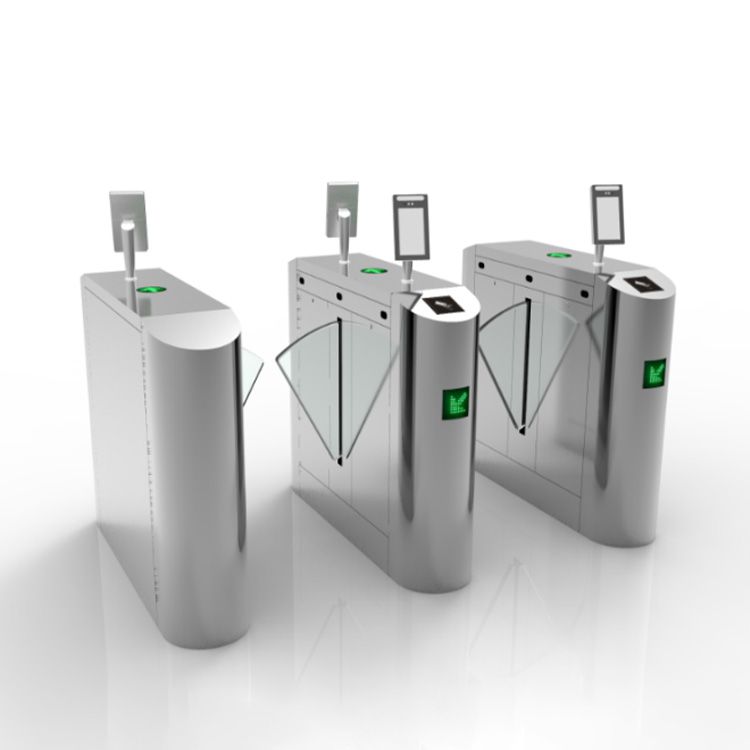

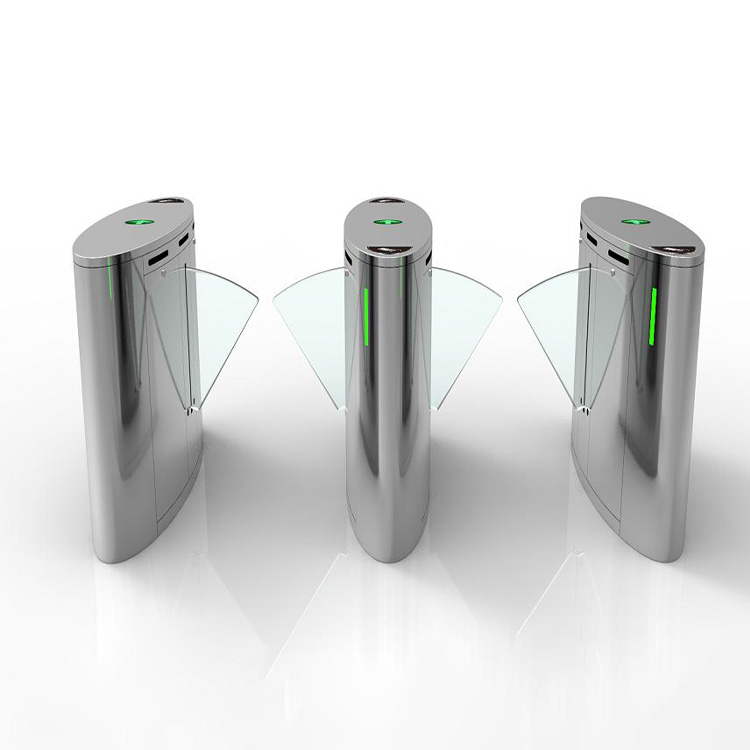

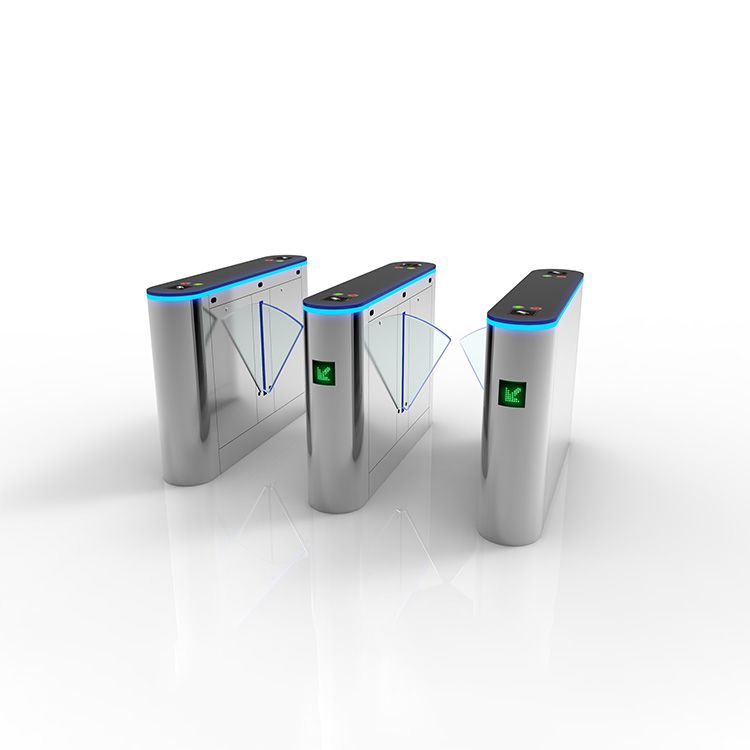

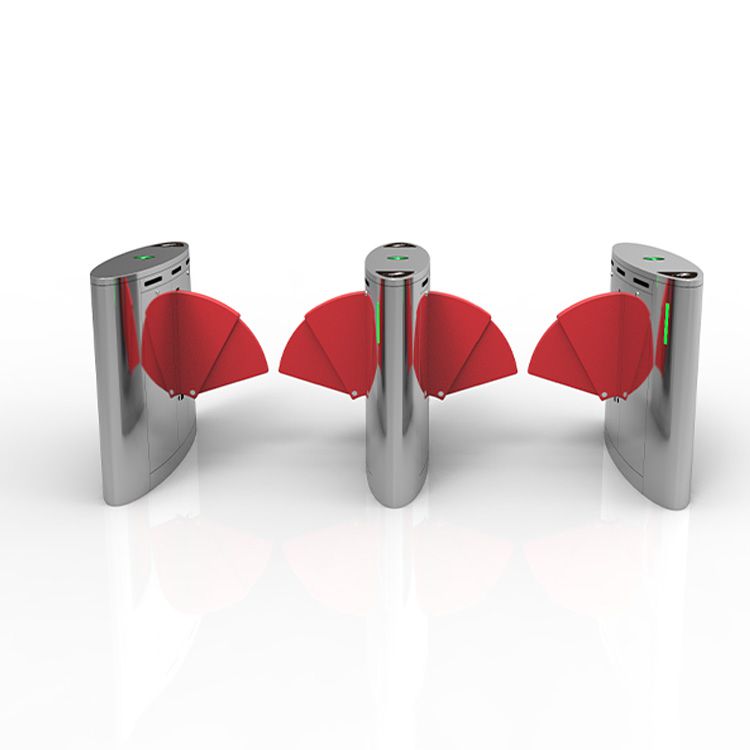

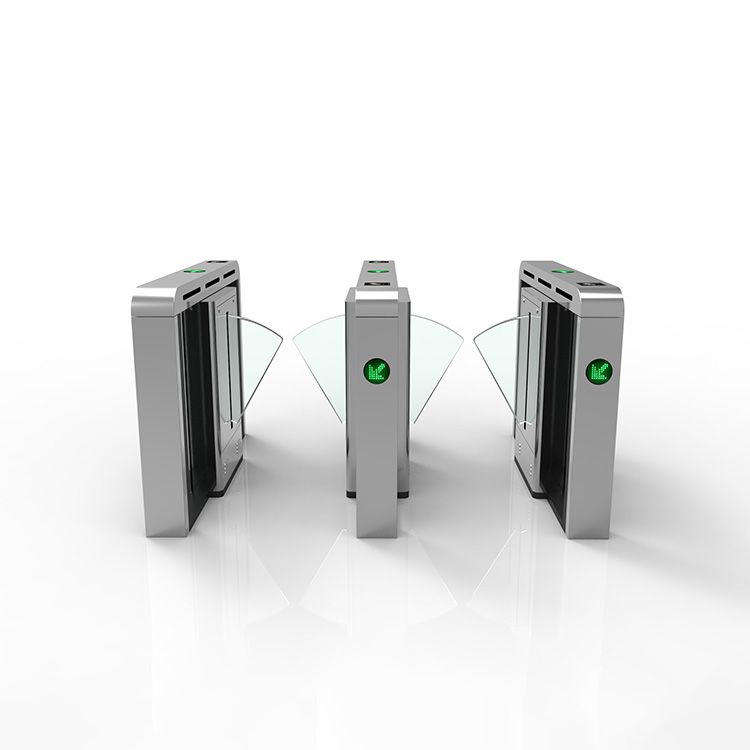

Residential Complex and Subway Flap Barrier Gate

Flap barrier gates are one of the channel management equipment and are mainly used for pedestrian channel management. They have the characteristics of quick opening, safety and convenience, and are ideal management and guidance equipment for pedestrians to enter and exit channels with high frequency. They are now widely used in airports, subway stations, and railway stations. , docks, scenic spots, parks, student dormitories, etc.

INQUIRY

Product Description:

Technical Parameters:

Chassis material	SUS 304 stainless steel
Relative humidity	≤95%, non-condensing
Working environment	indoor, outdoor
Size	1400L280W980H（MM）
Passage width	550mm
Passing direction	single direction/ bi-direction
Door opening and closing time	0.6 seconds
Traffic speed	40 people/minute

Standard product functions and features:

1. It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use.

2. Through the built-in small push-pan LCD screen on the main control board, the running status of the programmable device.

3. Mechanical anti-pinch and infrared induction anti-pinch functions, when the telescopic arm encounters resistance in the process of resetting, the motor will automatically stop working within a specified time, and reset again after the default delay (until reset), with a small force (≤2Kg ).

4. Illegal intrusion, tailgating alarm, reverse intrusion gate will automatically close.

5. With anti-collision function, the telescopic arm automatically locks when it does not receive the opening signal.

6. The telescopic arm can be adjusted synchronously (for double pendulum).

7. It has an automatic reset function. After the gate is opened, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time. The reset time is adjustable from 1S to 60S (the default time of the system is 10S), and the power is turned off. The rear channel is automatically opened (in compliance with fire protection requirements), and the power-on channel is automatically closed.

8. Infrared induction reset, infrared induction anti-pinch function.

9. It can be connected with access control system, consumption system, electronic ticket system, biometric identification system, electrostatic tester and other equipment.

10. One-way or two-way control personnel entry and exit, infrared sensor entry and exit channels.

11. Remote control and management can be realized directly through the management computer.
